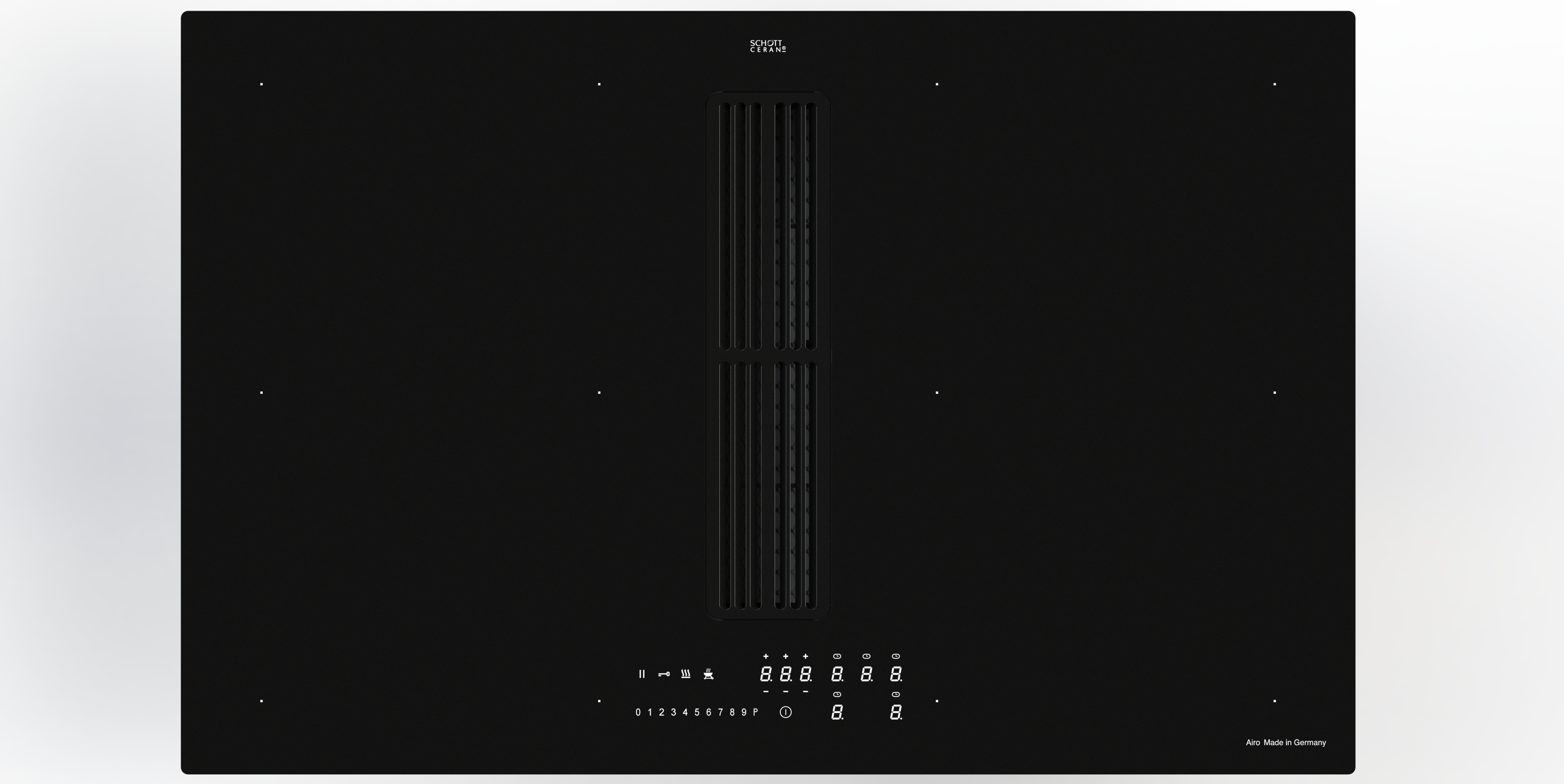

IG800-STFMB

Features:

• High quality induction • Central interactive slider touch control • Automatic boil • Automatic pot detection

• Boost level for each cooking zone • Bridge function • Timer • Hold setting • Grill setting • Pause Function

• Recall Function • Lock • Child lock • Integrated automatic fan control (10 levels) slider control

• Maximum space on cooking zones • Barrier-free • Metal grease filter • Indicator for filter change

• Extractor components of high quality • Easy cleaning • EC fan (energy saving, high efficiency)

Dimensions (W x H x D):

Frameless 800 x 195 x 520 mm

cut-out dimensions (W x D):

750 x 500 mm

Induction cooking zones:

2 induction cooking zones 230 x 230 mm; 2,1/3,0 kW

2 induction cooking zones 230 x 230 mm; 2,1/3,0 kW

Bridge function 3,5 kW; 3,7 kW

Electrical specifications:

Voltage AC 230 V / 2NAC 400 V

Output 7,2 kW (induction)

Output 0,168 kW (fan)

Technical specifications:

Operating Mode: External air exhaust

/Recirculation mode

Output max./IEC: xxx m³/h

Motor: 168 Watt

Control: Slider

9 levels + powerlevel

Automatic delay

Air outlet motor: NW150

Operating noises: min. xx dBA

max. xx dBA

Grease filter: Aluminium

Material: Glass ceramic

9 steps power control touch-slider +

power level for venting

Grease separation degree max. (GFEhood): >95 %

Grease separation degree (maximum level): A
